PINN DOWNLIGHT

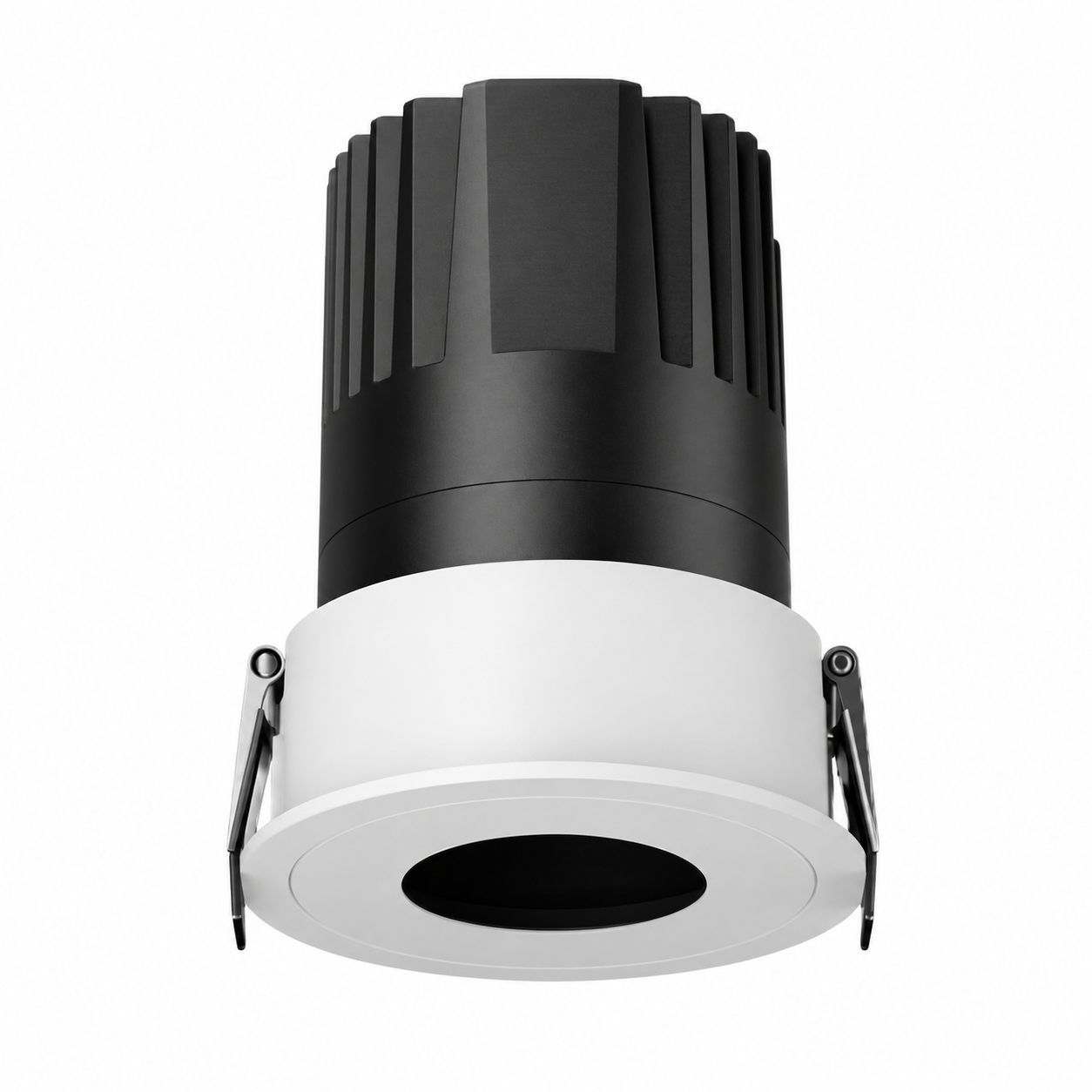

  • The Pinn features a refined round pinhole trim design, delivering a clean and versatile aesthetic suited to a wide range of applications.

    Constructed from die-cast aluminium with a durable powder-coated finish, this minimalist downlight offers efficient thermal management, lightweight performance, and long-lasting reliability.

  • Wattage: 4W, 6W, 8W, 10W, 12W, 15W

    Lumen Output: 90lm/w

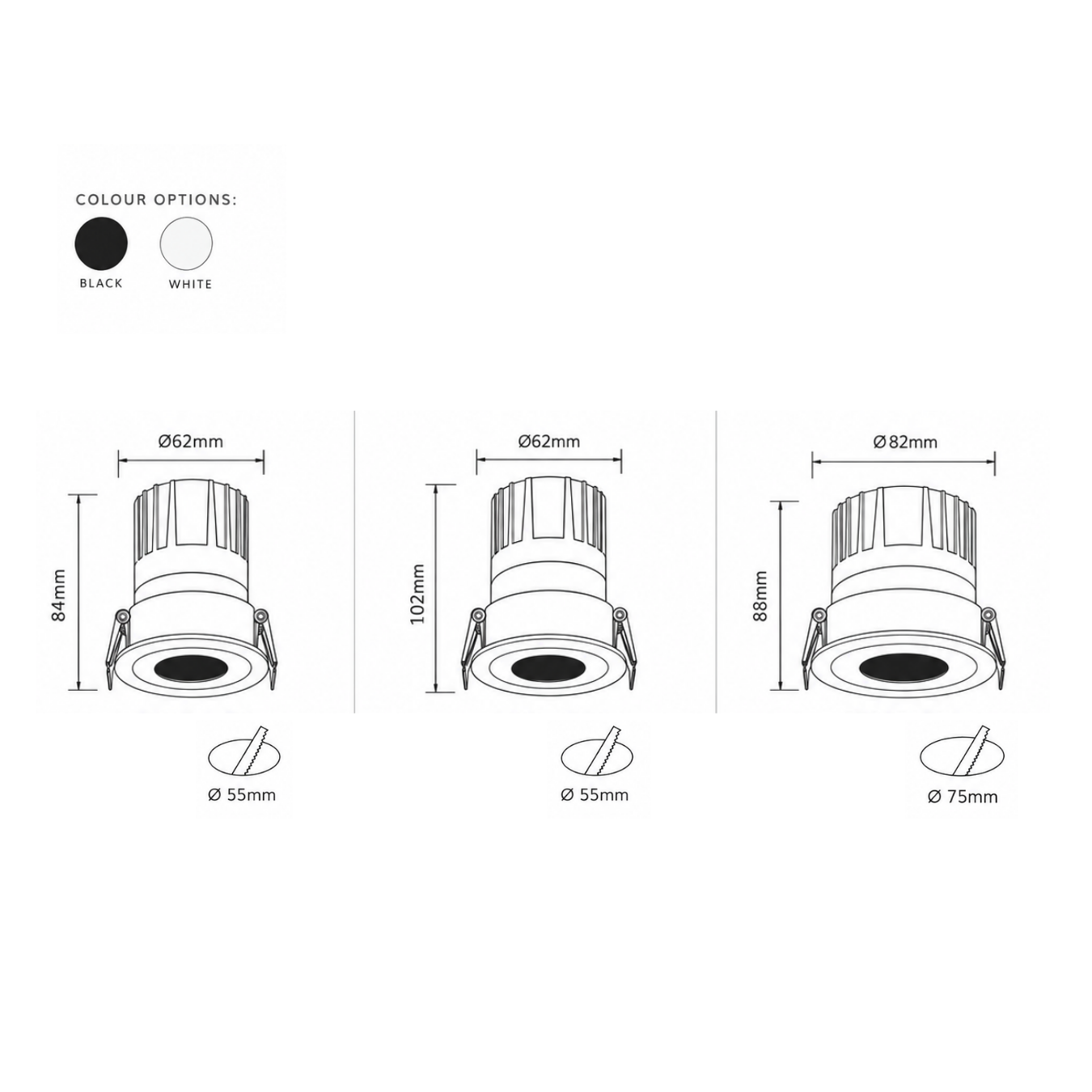

    Measurements:

    • ⌀62×84mm (4W-10W)

    • ⌀62×102mm (12-15W)

    • ⌀82×88mm (4W-15W)

    Mains (input) Voltage: 220-240V

    Rating of Protection: IP20

    Colour Rendering Index: CRI>90

    Driver: Remote Non-Dimming Driver (TRIAC or DALI Dimming on Request)

  • Beam Spread: 10°, 18°, 24°, 36°, 50°

    Colour Temperature: 3000K, 4000K

    Trim Colour: Black, White

    Dimming (On Request): TRIAC, DALI
